| Pixel Pitch: | 3.91mm | Panel Material: | Die-casting Aluminum |
|---|---|---|---|
| Processing: | 16 Bit | Refresh Rate: | >1920 Hz |
| Brightness: | ≥6000 Nits | Servicing: | Front/Rear |
| Colors: | 281 Trillion | Contrast Ratio: | 4000:1 |
| Highlight: | outdoor led screen hire,events led display |
||

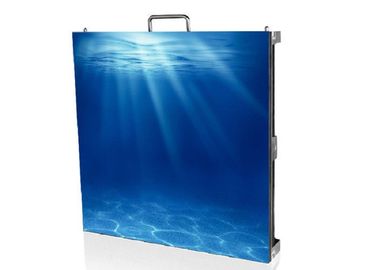

P3.9 P4.8 Outdoor LED Display HD LED Video Wal Water Proof For Rental
BOR-III Series
High Bright, High Definition,
Outdoor Rental LED Display
Specification
| BOR-III-3 | BOR-III-4 | BOR-III-5 | BOR-III-6 | |
| Physical Pitch | 3.91mm | 4.81 mm | 5.95mm | 6.25 mm |
| Pixel Configuration | SMD 1921 | SMD 2727 | SMD 2727 | SMD 2727 |
| Pixel Density |
65536pixels/m²
|
43264 pixels/m²
|
28224 pi xels/m²
|
25600 pixe ls/m²
|
| Module Dimensions (W × H) (mm) | 250 × 250 | 250 × 250 | 250 × 250 | 250 × 250 |
| Panel Dimensions (mm) |
500 × 500 × 80 / 500 × 1000 × 80 |
500 × 500 × 80 / 500 × 1 000 × 80 |
500 × 500 × 80 / 500 × 10 00 × 80 |
500 × 500 × 80 / 500 × 1 000 × 80 |
| NO .of Modules Per Panel (W × H) | 2 × 2/2×4 | 2 × 2 /2×4 | 2 × 2/2×4 | 2 × 2/2×4 |
| Physical Resolution of Module (W × H) | 64×64 | 52×52 | 42×42 | 40×40 |
| Physical Resolution of Panel (W × H) | 128×128/128×256 | 104×104/104×208 | 84×84/84×168 | 80×80/80×160 |
| Panel Material | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum | Die-Casting Aluminum |
| Single Cabinet Weight | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel | 9/ 15 kg/panel |
| Processing | 16 bit | 16 bit | 16 bit | 16 bit |
| Colours | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Contrast Ratio | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 | 4,000 : 1 |
| Average Power Consumption | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel | 75 /150 W/panel |
| Max Power Consumption | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel | 225 /550 W/panel |
| Operating Temp/Humidity | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% | -20℃ - 60℃ / 10% - 60% |
| Storage Temp/Humidity | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% | -30℃ - 60℃ / 10% - 60% |
| Refresh Rate | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz | ＞1,920 Hz |
| Brightness | ≥6000 nits | ≥6000 nits | ≥6000 nits | ≥6000 nits |
| Horizontal Viewing Angle | 160° | 160° | 160° | 160° |
| Vertical Viewing angle | 140° | 140° | 140° | 140° |
| Expected Lifetime | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs | 100, 000 Hrs |
| Max Stacking | 20/10 | 20/10 | 20/10 | 20/10 |
| Max Hanging | 20/10 | 20/10 | 20/10 | 20/10 |
| Servicing | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| IP Rating (Front/Rear) | IP 65/ IP 54 | IP 65/ IP 54 |
IP 65/ IP 54 |
IP 65/ IP 54 |
| Certification |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
CCC, CE, ETL, RoHS |
User Friendly and Fast Installation
Feature
Outdoor Rated
→ IP65 rating for front and rear
→ Suitable brightness adjustable for outdoor day and night
→ Deep black level, contrast ratio 4000:1
→ Truss hanging and ground support both available
→ Fast lock and handle designed user friendly
→ Front and rear access
→ Tools free installation
Slim,Light Weight and Quiet
→ 500mm×500mm or 500×1000mm options
→ 80mm thickness
→ 1 person job
→ Fanless design
Smart Concave and Convex
→ Both 500mm×500mm and 500mm×1000mm cabinets are arc-able
→ 0°-10° concave and convex degree
