Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 5mm | Driving Method: | 1/12 Scan |
|---|---|---|---|
| Input Voltage: | AC 110/220±10% | Temperature: | -20~50℃/ -40~60°C |
| Pixel Density: | 40000 Pixels/m² | Pixel Failure: | <0.0003 |
| Highlight: | indoor full color led display,led publicity screens |
||

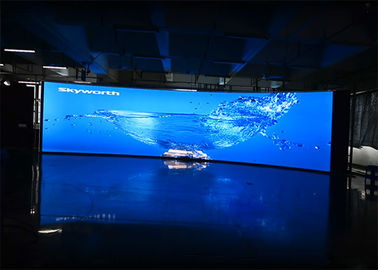

Wide Viewing Angle Indoor Rental LED Display, High Resolution 1/12 Scan LED Screen
Description:
P5 indoor rental LED display have unique die casting aluminum cabinet structure. Stable, durable and light weight cabinet also make the installation easier.
Feature:
1 Integrated design: power and receiver card integrated in the control panel, no signal cable between the module and the power line, greatly improving the stability and reliability;
2 Stable circuit control technology, simple operation, easy maintenance;
3 Unique die-cast aluminum box structure, stable, durable, lightweight;
4 very "light, thin, dense" feature, in order to provide a greater realization of creative space;
5 Accurate, fast and flexible installation location, can effectively respond to different application areas;
6 Deep gray scale processing technology, high-quality screen refresh, and create fantastic stage effects;
7 Easy maintenance: with power and signal work status self-check function, real-time display each product's power and signal work status, when a product does not display screen, to help you quickly determine the problem quickly and make the appropriate repair measures;
Technical Parameter:
| Model | IRB-5 |
| Pixel Pitch | 5mm |
| Pixel Density | 40000 pixels/m2 |
| LED Type | SMD2121 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 480*480mm |
| Cabinet Resolution | 96*96pixels |
| Cabinet Weight | 7kg |
| Cabinet Material | aluminum |
| Ingress Protection(front/rear) | IP40/IP21 |
| Brightness | >1200nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/12 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 240w/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity (operating/storage) |
10%~90%RH /10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
FAQ:
1, What is the warranty of your led display?
A: We offer 2 years warranty and more than 100000 hours screen life span
2, what is your payment term? How long it takes to delivery?
A: We usually accapt the T/T or L/C. Both of them will at least 30% deposit in advance,and the rest of 70% will paid before delivery. The lead time is usually 20 day.
3, How can you ensure the led display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, to ensure transportation safety and normal use of our products.
4, What is your pre-sale and post-sale service?
A: For pre-sale service, we have professional sales team and technical team,who are willing to answer your question within 24 hours.
For post-sale service,we will instruct you how toinstallation,how to use,how to change the broken moudles,and we can also send the technicals to your country,in general,our led display will not have a big problem,you can rest assured to buy.
Shipment:
Delivery Method: Flight case: 4-8 unit display Panels are packaged in one case.
Delivery Time: 20-25 Working Days.
Payment Item: T/T, L/C, West Union.
