Product Details:
Payment & Shipping Terms:
|
| LED Type: | SMD3535 | LED Configuration: | 1R1G1B |
|---|---|---|---|
| Cabinet Material: | Cold Steel | Cabinet Weight: | 65kg |
| Brightness: | >6500nits | Specification: | Multi Size Available |
| Ingress Protection (front/rear): | IP65/IP54 | Pixel Failure: | <0.0003 |
| Highlight: | mobile led display truck,truck mounted led screen |
||
6,000nits Mobile LED Screen Portable Led Signs Multi Size Available
The products are mobile display device which popularly used for mobile truck LED display traffic management,public notice of upcoming events like large meetings and sport events, commercial advertising LED display screen,shopping mall LED display, LED screen for mobile media.
Mobile led screen Features
1. High brightness
2. High gray scale
3. High refreshnrate
4. Excellent thermal management
5. High color fidelity
6. Uniform color
7. Low consumption
8. Long life span
9. Good waterproof
10. Easy operation
11. UL, CE&RoHS certificate
12. Warranty 2years
Mobile led screen specs
| Pixel Pitch | 6mm |
| Pixel Density | 27778px/m2 |
| LED Type | SMD3535 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 1152mm*960mm |
| Cabinet Resolution | 192*160pixels |
| Cabinet Weight | 65kg |
| Cabinet Material | Cold steel |
| Ingress Protection (front/rear) |
IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/6Scan |
| Power Consumption(avg.) | 300w/m2 |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | ≥ 1500Hz |
| Gray Scale | 16bit |
| Power Supply | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C -40~60°C |
| Humidity(operating/storage) | 10%~90%RH 10%~85%RH |
| MTBF | ≥1000 Hours |
| Life Span | ≥50000 Hours |
| Pixel Failure | <0.0003 |

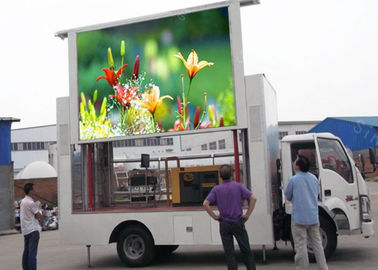

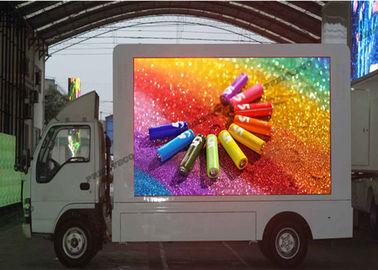

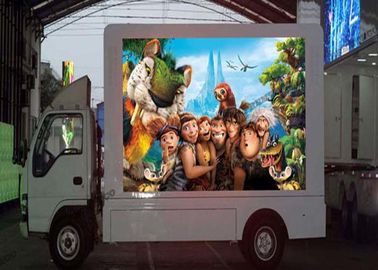

Prouduct images
Wide vieing angle of 140°(Both horizontal and Vertical)
Advantages
1. As a special vehicle for advertising, generally used for the product promotion, brand promotion, draft activities , live shows sales, sporting events, vocal concerts, concerts,ect.
2. Anti-corrosion,Antifogging,and excellent waterproof and dustproof
3. Achieve low heat, low noise and low radiation: Through the good structure design, ensure Low decibel value and stable performance when it works in the normal temperature; Passed the EMC test.
About us
1. Bakovision has a complete product line which include indoor and outdoor full color screen, LED background curtain wall, LED curved display, LED strip information screen.
2. Bakovision owns its diversified business philosophy, group management mode protect each display item excellent quality, high-quality service for customers to worry about lifting .
3. We own more than 10000 square meters.Our production capacity reaches 8,000 square meters per month.It ensure that we could to meet customer needs.
4. The indoor full color LED Display mounted adopts aluminum alloy mask, which has excellent thermal management. As for Outdoor full color screen,We design and produce it strictly according to the standard of IP65.
5. Reliable quality, advanced technology, stable technology, automated production equipment, and reasonable price.
6. During the installation of the display screen,We will do a simple training about system and the working principle of LED display.It including the installation of display system and daily maintenance, as well as simple software and hardware troubleshooting.
