Product Details:
Payment & Shipping Terms:
|
| Pixel Pitch: | 8mm | Cabinet Weight (Kg): | 27.7kg |
|---|---|---|---|
| Brightness: | ≥6500nit | Viewing Angle(H/V): | 160°/140° |
| Data Refresh Rate: | >1920Hz | Pixel Density(dots/m²): | 15625 |
| Power Consumption(avg.): | 245w/square Meter | ||
| Highlight: | outdoor led billboard,outdoor electronic signage boards |
||

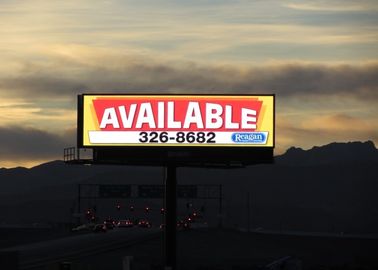

P8mm SMD Fixed LED Board, High Resolution Billboard LED Display for Outdoor Advertising
Advantages:
1. Competitive Price: Orders directly from manufacturer to reduce intermidate expenditure, buy high quality sign products with more reasonable price;
2. First-class Quality: We provide you with high quality signs produced by our experienced technicians using technology and high quality raw materials;
3. Strict Leading Time: Depending on the type and quantity of ordered signs, we generally need only 4 to 15 days to complete the production;
4. OEM service offered, Customized service offered, Design service offered;
5. Competitive price, Short delivery, Timely transportation, Installation instruction;
6. Long time cooperate with signs company, construction company, design company, advertising company, chain shops, distributers, hotels, shopping malls and etc.
FAQ
How to choose a proper led screen for your need?
You just need to think of three simple questions when you choose a led screen by yourself.
1.Will you use it indoor or outdoor?
2.Is it for rental use(need to be moved from one place to another place very often) or for fixed installation(to be installed in one place for ever)
3.what is the appoximate size of the led screen you would like to purchase?
Which pixel pitch should i choose?
There are many different pixel pitch from 1.667--20,25,30mm, there is a roughly principle-usually small pixel(1.667mm-10mm) used for indoor led screen, bigger pixel (10mm-30mm) used for outdoor led screen(for example high way huge advertisement).
How to install it after i received it?
We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
| Model | Spaceship-8 |
| Pixel Pitch | 8mm |
| Pixel Density | 15625 pixels/m2 |
| LED Type | SMD2727 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 1024mm*768mm |
| Moduel Size | 512*256 |
| Cabinet Material | cold steel |
| Ingress Protection (front/rear) |
IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 160°/140° |
| Driving Method | 1/8 scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1920Hz |
| Gray Scale | 14~16bit |
| Power Consumption(avg.) | 245w/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Weight | 27.7KG |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
